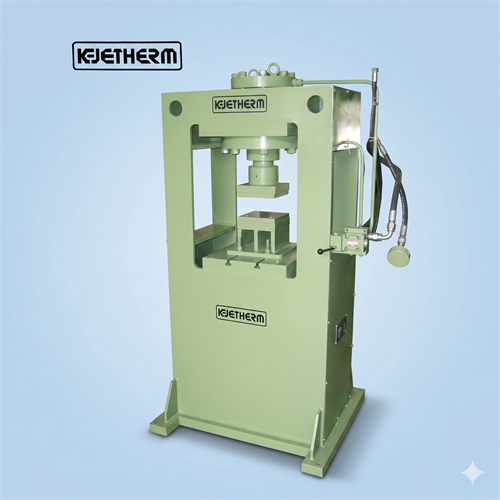

POWDER COMPACTING PRESS
Wide ranges of powder compacting presses are manufactured from heavy steel plates. The min. frame is fabricated from plates & thereafter they are stress relieved. The presses are designed in such a way that we get negligible deflection during its working.
Application
These are generally used to compact mixture of powders such as Cobalt,Iron,Copper,Tin,Silver,Tungsten metal carbide etc. including diamond grit in dies through down stroke plunger. It could be multiple die system or single die for compacting operation to get segment/wire saw to be hot sintered thereafter.
|
Models
|
TCP-20
|
TCP-50
|
TCP-80
|
TCP-100
|
TCP-120
|
| Tons | 20 | 50 | 80 | 100 | 120 |
| Ram Stroke (mm) | 100 | 100 | 150 | 150 | 150 |
| Day Light (mm) | 400 | 450 | 500 | 500 | 500 |
| Fixed table (mm) | 350*400 | 400*450 | 450*500 | 500*550 | 550*600 |
| Speed of Ram | |||||
| Approach (mm/sec) | 30 | 50 | 50 | 50 | 75 |
| Pressing (mm/sec) | 18 | 15 | 10 | 10 | 8 |
| Working Height (mm) | 950 | 1000 | 1000 | 1050 | 1100 |
| Motor (H.P) | 2 | 3 | 5 | 7.5 | 10 |
| Length (mm) | 400 | 450 | 550 | 600 | 650 |
| Breadth (mm) | 350 | 400 | 500 | 550 | 600 |
| Height (mm) | 1500 | 1550 | 1650 | 1800 | 1900 |
| Max. Operating Pressure (kg/sq.cm) | 100 | 130 | 160 | 160 | 160 |
| Approx. weight in Kgs |
1200 |
1500 |
2000 |
2500 |
3000 |
